Running Anchore Enterprise in an Air-Gapped Environment

Anchore Enterprise can run in an isolated environment with no outside internet connectivity. It does require a network connection to its own components and must be able to reach the Docker image registries (v2 API compatible) where the images to be analyzed are hosted.

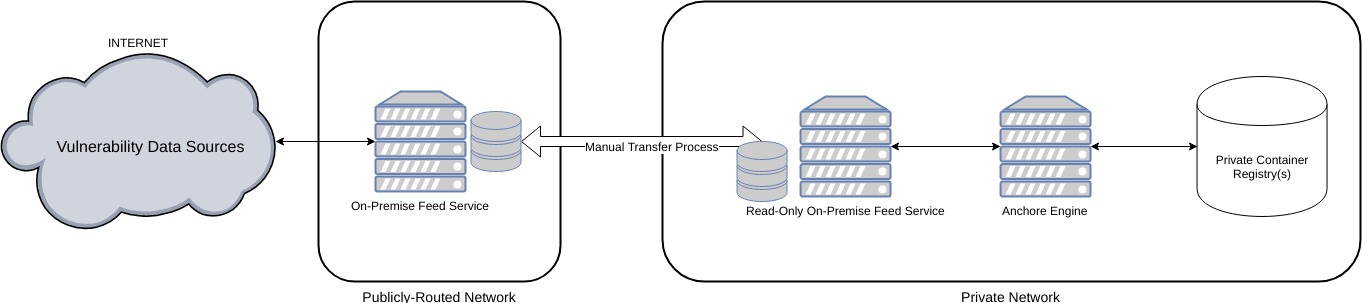

alt text

Components

  • Private Network
  • Public Network (internet is reachable)
  • Anchore Enterprise Feeds
  • Anchore Enterprise Feeds in Read-Only Mode
  • Anchore Engine
  • Docker Image Registry (any registry that is compatible with the Docker Registry v2 API)

Assumptions

  • The docker images to be analyzed are available within the Private Network.
  • Anchore Engine will be accessed from within the private network by the components in the infrastructure that need to query for analysis results.
  • There exists a way to move a data file from the Public Network to the Private Network.

Installation

  1. Refer to feed data migration for configuring a Read-Only Feeds in Private Network.
  2. Install Anchore Engine in Private Network.
  3. Configure the Engine to use the Read-Only 4. Feeds installation, see configuration.
  4. Start Anchore Engine.

Periodically Updating Feed Data

To ensure that the Anchore Engine installation has up-to-date vulnerability data from the vulnerability sources, you need to update the Read-Only Feed Service with data from the feed service running on the public network. This is essentially the same process that was used at installation to initialize the Read-Only Feed Service. It should be done on a regular schedule, or when the Public Network Feed Service task execution indicates new data was detected.
